X-VOLT ® RHZ1-OL(S), AL (x3) - 12/20 (24) kV - Eca
Application
X-VOLT® RHZ1-OL(S), AL is used for medium voltage installations or distribution networks both indoors and outdoors.
Ex. for the supply of transformer stations, infrastructure, wind turbines, solar parks, factory plants, data centers along with others.

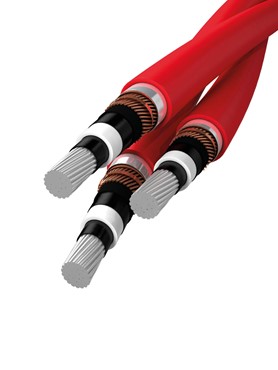

Construction
Conductor
Aluminium, cl. 2
Insulation
Cross-linked polyethylene type XLPE according to IEC 60502-2 and type DIX3 according to HD 620-1, natural color.
Semiconducting layer around the isolation. Easy strippable.
Screen
Screen of Cu threads and hygroscopic tape
Outer sheath
Halogen free polyolefine type DMZ1 acc. to 620-1 and type ST7 acc. to IEC 60502-2, red with two grey stripes.
Technical data
Working temperature
-15° C to +90° C
Rated voltage
12/20 (24) kV
Bend radius
15 x cable diameter
Technical comments
Short circuit temp.: max 250° C / 5 sec.
CPR classification:
Eca
Please request for DoP at dop@scankab.dkApprovals
EN 50575, IEC 60228, IEC 60502-2, HD 620-1, IEC 60332-1, IEC 60754-1/2, UNE 211605, AENOR, RoHS, CE
Abrasion resistant
Bending radius 15 x cable diameter
Can be buried
Can lay in tubes
Flame retardant acc. to IEC 60332-1
For industrial use
Halogen free
Low emission of corrosive gases acc. to IEC 60754
Max. working temp. +90° C
Medium voltage cable
Min. working temperature -15° C
Outdoor use
Torsion resistant
UV-resistant
| SKU | EAN | CPR | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* |
|---|---|---|---|---|---|---|---|
| 1033T095.H25WSI | - | Eca | 3x1x95/25 | 280 | Drum | 61,6 | 3080 |
| 1033T150.H25WSI | - | Eca | 3x1x150/25 | 368 | Drum | 68,0 | 3780 |
| 1033T240.H35WSI | 5704403212552 | Eca | 3x1x240/35 | 502 | Drum | 77,7 | 5170 |
| 1033T300.H35WSI | 5704403212569 | Eca | 3x1x300/35 | 577 | Drum | 82,7 | 5815 |
| 1033T400.H35WSI | 5704403212576 | Eca | 3x1x400/35 | 673 | Drum | 90,2 | 7045 |
| * The values can have small deviations | |||||||
