X-VOLT ® RHZ1-OL(AS), CU - 12/20 (24) kV - Cca

Application

X-VOLT® RHZ1-OL(AS), AL is designed for medium voltage installations and distribution networks both indoors and outdoors, where high fire safety requirements are necessary. This cable is particularly suitable for use in environments such as transformer stations, infrastructure, wind turbines, solar parks, factory facilities, and data centers, where it effectively prevents fire spread and ensures continuous operation under critical conditions.

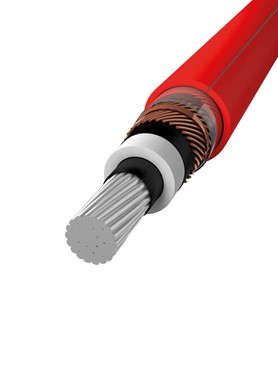

Construction

Conductor

Aluminium, cl. 2

Insulation

Cross-linked polyethylene type XLPE according to IEC 60502-2 and type DIX3 according to HD 620-1, natural color.
Semiconducting layer around the isolation. Easy strippable.

Filling sheath

Fireproof polyolefin layer, halogen free.

Screen

Screen of Cu threads and hygroscopic tape

Outer sheath

Halogen free polyolefine type DMZ1 acc. to 620-1 and type ST7 acc. to IEC 60502-2, red with two green stripes.

Technical data

Working temperature

-15° C to +90° C

Rated voltage

12/20 (24) kV

Bend radius

15 x cable diameter

Technical comments

Short circuit temp.: max 250° C / 5 sec.

CPR classification:

Cca-s1b,d2,a1

Please request for DoP at dop@scankab.dk

Approvals

EN 50575, IEC 60228, IEC 60502-2, HD 620-1, IEC 60332-1, IEC 60754-1/2, UNE 211605, EN 61034, AENOR, RoHS, CE
Abrasion resistant
Bending radius 15 x cable diameter
Can be buried
Can lay in tubes
Flame retardant acc. to IEC 60332-1
For industrial use
Halogen free
Low emission of corrosive gases acc. to IEC 60754
Low smoke emission during fire acc. to 61034
Max. working temp. +90° C
Medium voltage cable
Min. working temperature -15° C
Outdoor use
Torsion resistant
UV-resistant
SKU EAN CPR Dimension (mm2) Current Value (A) Winding Diameter (mm)* Weight (kg/km)*
10301095.H25WASI 5704403212743 Cca-s1b,d2,a1 1x95/25 280 Drum 36,6 1600
10301150.H25WASI 5704403212767 Cca-s1b,d2,a1 1x150/25 368 Drum 39,6 1960
10301240.H35WASI 5704403212781 Cca-s1b,d2,a1 1x240/35 502 Drum 42,0 2265
10301400.H35WASI 5704403212804 Cca-s1b,d2,a1 1x400/35 673 Drum 47,4 2930
10301630.H50WASI 5704403212828 Cca-s1b,d2,a1 1x630/50 895 Drum 53,9 3650
* The values can have small deviations
