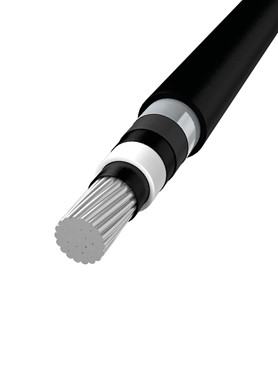

X-VOLT ® FR-N20XA8E-AR, 1 conductor - 12/20 kV


X-VOLT® FR-N20XA8E-AR is used for medium voltage installations or distribution networks both indoors and outdoors.
Ex. for the supply of transformer stations, infrastructure, wind turbines, solar parks, factory plants, data centers along with others.



Aluminium, cl. 2


Cross-linked polyethylene insulation, type PR, natural color. Cross-linked in catenary line with nitrogen atmosphere.

Inner sheath

Insulation screen: Semi-conducting XLPE
Inner covering: Semi-conducting water-swellable tape
Radial water barrier: Aluminum/plastic laminate tightly attached to outer sheath


Strippable cross-linked semiconductor screen applied over insulation in a triple-extrusion process.
Aluminium foil.

Outer sheath

Polyolefin, black

Technical data

Working temperature

-15 °C to +90 °C

Rated voltage

12/20 kV

Test voltage

42 kV

Bend radius

15 x cable diameter

CPR classification:


Please request for DoP at dop@scankab.dk


IEC 60754, NF C 33-226, EN 60228,
Bending radius 13 x cable diameter
Can be buried
Can lay in tubes
For use in cable trays
Halogen free
Max. short circuit temp. +250° C
Max. working temp. +90° C
Outdoor use
Water resistant
SKU EAN CPR Dimension (mm2) Current Value (A) Winding Diameter (mm)* Weight (kg/km)*
10301050.FR# 5704403190195 Eca 1x50 201 Drum - 705
10301095.FR# 5704403190201 Eca 1x95 338 Drum 30,3 1060
10301150.FR# 5704403190218 Eca 1x150 377 Drum 30,7 1035
10301240.FR# 5704403190225 Eca 1x240 593 Drum 38,0 1770
10301400.FR# 5704403190232 Eca 1x400 769 Drum 44,4 2350
10301500.FR# 5704403190249 Eca 1x500 - Drum - -
10301630.FR# 5704403190256 Eca 1x630 1059 Drum 51,9 3365
* The values can have small deviations
