SCANFLEX ® NTMCGCWOEU - 18/30 kV
Application
The flexible single core SCANFLEX® NTMCGCWOEU power supply cable is usable for short connections of mobile transformer substations to overhead lines, also for use in railway vehicles, switching stations and control panels.

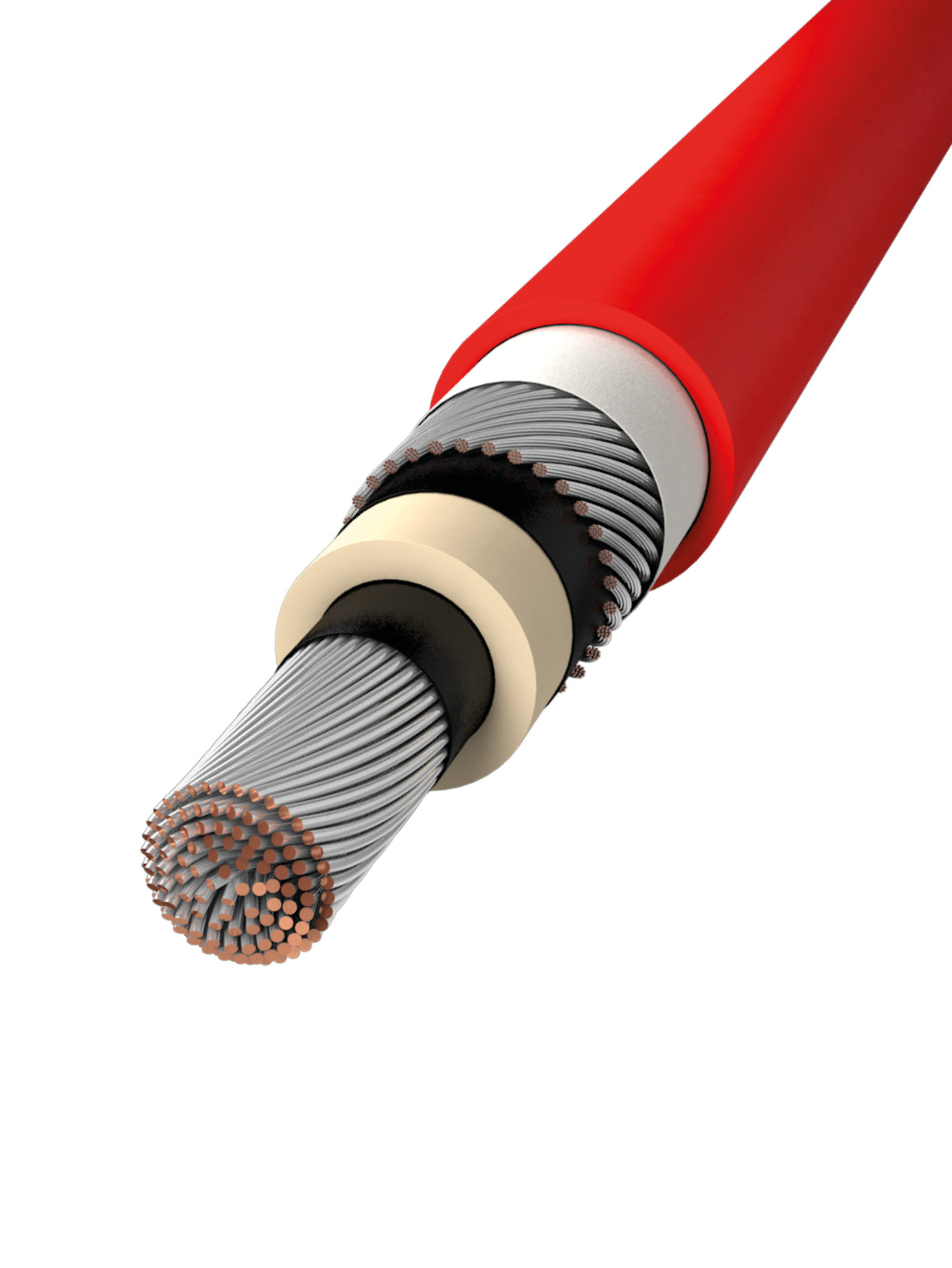

Construction
Conductor
Finely stranded tinned, electrolytic copper, cl. 5
Insulation
Ethylene propylene rubber (EPR)
Screen
Spinning of tinned copper wires with cross section 16 or 25 mm²
Outer sheath
5GM3 compound, red
Technical data
Working temperature
Fixed: -40° C to +90° C
Flexible: -25° C to +60° C
Rated voltage
18/30 kV
Test voltage
43 kV
Bend radius
Fixed: 6 x cable diameter
Flexible: 10 x cable diameter
Approvals
EN 60811-404, DIN VDE 0298, DIN VDE 0250, EN 60228, DIN VDE 0207, DIN VDE 0207, EN 50343, IEC 60811-2-1, IEC 60332-1-2, RoHs
Bending radius 10 x cable diameter
Can lay in tubes
Flame retardant acc. to IEC 60332-1
Flexible
For industrial use
Max. working temp. +90° C
Medium voltage cable
Min. working temperature -40° C
Oil resistant
Outdoor use
UV-resistant
Withstands moisture
| SKU | EAN | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* | |
|---|---|---|---|---|---|---|---|
| 505702501 | 5704403185528 | 1x25/16 | 189 | Drum | 35,3 | 1600 | |
| 505703501 | 5704403185306 | 1x35/16 | 234 | Drum | 37,3 | 1830 | |
| 505705001 | 5704403185535 | 1x50/16 | 294 | Drum | 38,9 | 2030 | |
| 505707001 | 5704403185542 | 1x70/16 | 360 | Drum | 41,0 | 2325 | |
| 505709501 | 5704403185559 | 1x95/16 | 434 | Drum | 42,4 | 2600 | |
| 505712001 | 5704403185566 | 1x120/16 | 505 | Drum | 43,9 | 2900 | |
| 505715001 | 5704403185573 | 1x150/25 | 582 | Drum | 46,8 | 3385 | |
| 505718501 | 5704403185580 | 1x185/25 | 664 | Drum | 50,0 | 3940 | |
| 505724001 | 5704403185597 | 1x240/25 | 782 | Drum | 51,8 | 4485 | |
| * The values can have small deviations | |||||||
