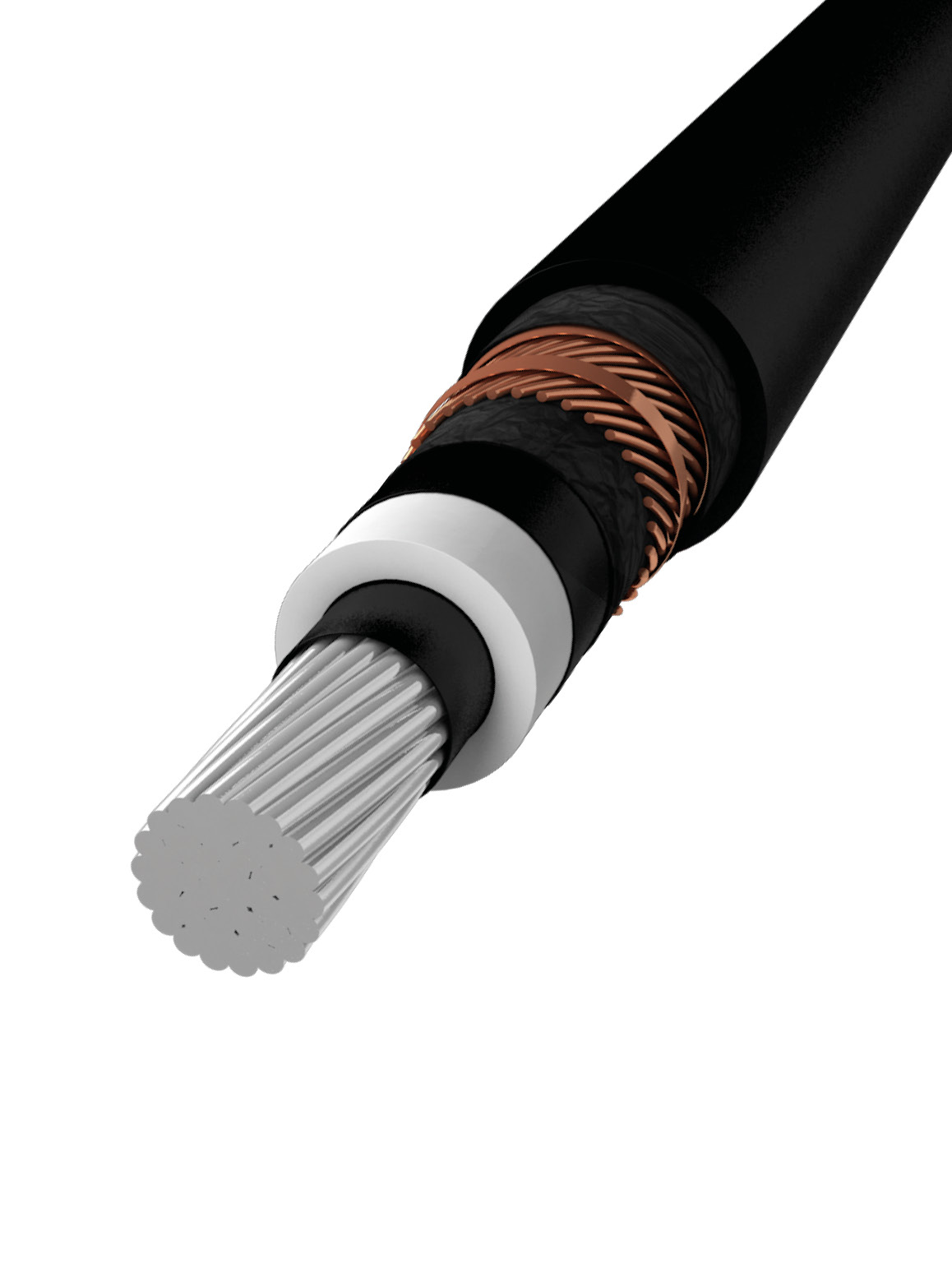

NA2XS2Y single, Cu - 12/20 (24) kV

Application

NA2XS2Y is used for installations indoor as well as outdoor, above or directly in the ground, in tubes or water.

Conductor

Round alu-threads, class 2
Semi conducting layer around the conductor

Insulation

XLPE insulated
Semi conducting layer around the insulation

Filling sheath

Tape of conductive material

Screen

Cu threads over tape material

Outer sheath

PE, black

Working temperature

-20° C to +90° C

Rated voltage

12/20 kV (24 kV)

Test voltage

42 kV

Bend radius

15 x cable diameter

IEC 60502, CE, RoHS

Bending radius 15 x cable diameter

Can be buried

For use in wind turbines

Max. working temp. +90° C

Medium voltage cable

Min. working temperature -20° C

UV-resistant

SKU	EAN	Dimension (mm²)	Current Value (A)	Winding	Diameter (mm)*	Weight (kg/km)*
871012811	-	1X35/16	155	Drum	28	725
871011443	-	1X50/16	185	Drum	29	830
871011444	-	1X70/16	231	Drum	31	920
871013027	-	1X70/25	231	Drum	32	1332
871011324	5704403080960	1X95/16	280	Drum	32	1050
871011323	-	1X120/16	323	Drum	34	1150
871013075	-	1X120/50	323	Drum	33,8	1427
871011445	-	1X150/16	366	Drum	35	1300
871011325	-	1X150/25	366	Drum	35	1350
871011446	-	1X185/16	420	Drum	37	1450
871011321	-	1X185/25	420	Drum	37	1550
871011449	-	1X240/16	496	Drum	40	1650
871011448	-	1X240/25	496	Drum	40	1750
871013076	-	1X240/50	496	Drum	39,2	1898
871011450	-	1X300/25	569	Drum	42	2000
871011451	-	1X400/35	630	Drum	45	2400
871011452	-	1X500/35	766	Drum	48	2800
871013077	-	1X500/50	766	Drum	47,7	2843
871012227	-	1X630/35	890	Drum	52	3297
871013152	-	1X800/35	1015	Drum	58	3900
* The values can have small deviations
