N2XS2Y single, Cu - 18/30 (36) kV

Application

N2XS2Y is used for installations indoor as well as outdoor, above or directly in the ground, in tubes or water.

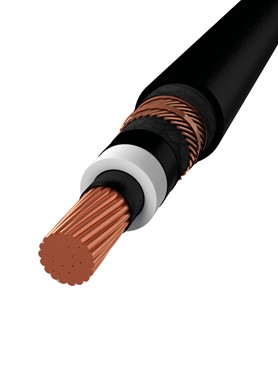

Construction

Conductor

Round Cu threads, class 2
Semi conducting layer around the conductor

Insulation

XLPE insulated
Semi conducting layer around the insulation

Filling sheath

Tape of conductive material

Screen

Cu threads over tape material

Outer sheath

PE, black

Technical data

Working temperature

-20° C to +90° C

Rated voltage

18/30 kV (36 kV)

Test voltage

63 kV

Bend radius

15 x cable diameter

Approvals

IEC 60502, CE, RoHS
Bending radius 15 x cable diameter
Can be buried
For use in wind turbines
Max. working temp. +90° C
Medium voltage cable
Min. working temperature -20° C
UV-resistant
SKU EAN Dimension (mm2) Current Value (A) Winding Diameter (mm)* Weight (kg/km)*
871011380 - 1X50/16 241 D./Cut 34 1350
871011383 - 1X70/16 299 D./Cut 36 1600
871011384 - 1X95/16 363 D./Cut 37 1900
871011385 - 1X120/16 418 D./Cut 39 2150
871011386 - 1X150/25 472 D./Cut 40 2550
871011995 - 1X150/50 472 D./Cut 40 2750
871011387 - 1X185/25 539 D./Cut 42 2900
871011388 - 1X240/25 635 D./Cut 44 3500
871015603 5704403059331 1X240/35 635 D./Cut 44 3467
871011777 - 1X240/70 635 D./Cut 45 4200
871011389 - 1X300/25 725 D./Cut 47 4150
871013686 - 1X300/35 725 D./Cut 47 4300
871013135 - 1X300/50 725 D./Cut 46,8 4276
871011390 - 1X400/35 831 D./Cut 50 5100
871011391 - 1X500/35 953 D./Cut 53 6200
871013037 - 1X630/35 1094 D./Cut 58 7403
* The values can have small deviations
