TOXFREE ® RZ1-K green/yellow - 0.6/1 kV
Application
TOXFREE® RZ1-K yellow/green is a halogenfree grounding cable, ideal for use in public buildings such as hospitals, schools, and airports, as well as industrial environments. The cables are particularly suitable for installations where a flexible connection is required, such as motors, and generators both indoors and outdoors, where ground identification is visible along the full length and at the same time is UV resistant.

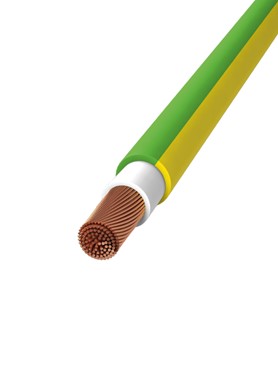

Construction
Flexible electrolytic Cu, class 5
XLPE
Flexible unleaded halogen free material
Halogen free compound, meter marked, green/yellow
Technical data
-40° C til +90° C
Min. installation and handling temperature: 0°C
AC: 0.6/1/(1.2) kV
DC: 1.5/(1.8) kV
5 x cable diameter
Short circuit temp.: max 250° C / 5 sec.
Conductor resistance:
1 conductor
B2ca-s1a,d1,a1
Please request for DoP at dop@scankab.dkApprovals
EN 50575, IEC 60502-1 / UNE 21123-4, IEC 60332-1, IEC 60332-3-C, IEC 60754-1, IEC 60754-2, IEC 61034-1, IEC 61034-2, KEMA-KEUR, AENOR, UKCA, CE, RoHS
| SKU | EAN | CPR | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* |
|---|---|---|---|---|---|---|---|
| 3201016G | 5704403037865 | B2ca-s1a,d1,a1 | 1G16 | 124 | D./Cut | 10,2 | 225 |
| 3201025G | 5704403025121 | B2ca-s1a,d1,a1 | 1G25 | 161 | D./Cut | 11,8 | 320 |
| 3201035G | 5704403025138 | B2ca-s1a,d1,a1 | 1G35 | 200 | D./Cut | 12,1 | 390 |
| 3201050G | 5704403025145 | B2ca-s1a,d1,a1 | 1G50 | 242 | D./Cut | 13,9 | 535 |
| 3201070G | 5704403025152 | B2ca-s1a,d1,a1 | 1G70 | 310 | D./Cut | 15,7 | 730 |
| 3201095G | 5704403025169 | B2ca-s1a,d1,a1 | 1G95 | 377 | D./Cut | 17,3 | 930 |
| 3201120G | 5704403040735 | B2ca-s1a,d1,a1 | 1G120 | 437 | D./Cut | 19,1 | 1165 |
| 3201150G | 5704403044290 | B2ca-s1a,d1,a1 | 1G150 | 504 | D./Cut | 21,0 | 1445 |
| 3201185G | 5704403211135 | B2ca-s1a,d1,a1 | 1G185 | 575 | D./Cut | 23,1 | 1740 |
| 3201240G | 5704403033980 | B2ca-s1a,d1,a1 | 1G240 | 679 | D./Cut | 26,1 | 2260 |
| 3201300G | 5704403211142 | B2ca-s1a,d1,a1 | 1G300 | 783 | D./Cut | 28,8 | 2815 |
| 3201400G | 5704403211159 | B2ca-s1a,d1,a1 | 1G400 | 940 | D./Cut | 33,8 | 3760 |
| * The values can have small deviations | |||||||
