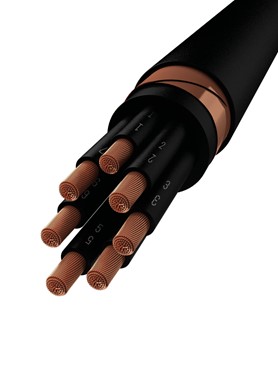

TOXFREE ® ROZ1-K (AS) - 0.6/1 kV
Application
The TOXFREE® ROZ1-K (AS) are particially suitable as signal cables for transformer stations. The cables can also be used where the demand is for double screened cables in connection with EMC. The cable is used in industrial and building installations, in public buildings, power plants, and engine installations or anywhere where there is a demand for 0.6/1 kV screened, halogen free, 90° C cable. The cable is suited for burial and may be used outdoors.
Construction
Conductor
Flexible electrolytic Cu, class 5
Insulation
XLPE
Conductor color
Black with white numbers
Filling sheath
Flexible halogen free material
Screen
Double CU tape with overlay
Outer sheath
Extra flexible halogen free compound, black
Technical data
Working temperature
-40º C to +90º C
Rated voltage
0.6/1 kV
Bend radius
5 x cable diameter
Approvals
IEC 60754, IEC 60332-1, IEC 60332-3, IEC 61034, IEC 60754, CE, RoHS
Bending radius 5 x cable diameter
Can be buried
Can lay in tubes
Electromagnetically protected
Environmentally friendly
Fire retardant acc. to IEC 60332-3
Flame retardant acc. to IEC 60332-1
Flexible
For industrial use
For use in cable trays
Halogen free
Impact resistance: medium
Low emission of corrosive gases acc. to IEC 60754
Low smoke emission during fire acc. to 61034
Max. working temp. +90° C
Meter marked
Min. working temperature -40° C
Outdoor use
Suitable for bricking
UV-resistant
Water resistant
| SKU | EAN | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* | |
|---|---|---|---|---|---|---|---|
| 980125003 | 5704403175659 | 3x2,5 | 36 | D./Cut | 11,8 | 235 | |
| 980125004 | 5704403175666 | 4x2,5 | 32 | D./Cut | 12,6 | 275 | |
| K980125005 | 5704403195053 | 5x2,5 | 32 | D./Cut | 15,3 | 402 | |
| 980125007 | 5704403175697 | 7x2,5 | 32 | D./Cut | 14,7 | 385 | |
| K980125007 | 5704403195060 | 7x2,5 | 32 | D./Cut | 16,3 | 470 | |
| 980125012 | 5704403175727 | 12x2,5 | 32 | D./Cut | 18,2 | 575 | |
| 980125019 | 5704403175741 | 19x2,5 | 32 | D./Cut | 21,9 | 835 | |
| K980125027 | 5704403195039 | 27x2,5 | 32 | D./Cut | 27,0 | 1240 | |
| 980140004 | 5704403175673 | 4x4 | 42 | D./Cut | 14,1 | 360 | |
| 980140007 | 5704403175703 | 7x4 | 42 | D./Cut | 16,7 | 525 | |
| 980140009 | 5704403175710 | 9x4 | 42 | D./Cut | 19,3 | 660 | |
| 980140012 | 5704403175734 | 12x4 | 42 | D./Cut | 21,1 | 805 | |
| 980160004 | 5704403175680 | 4x6 | 54 | D./Cut | 15,6 | 460 | |
| K980160007 | 5704403195077 | 7x6 | 54 | D./Cut | 19,5 | 785 | |
| K980160012 | 5704403195022 | 12x6 | 54 | D./Cut | 24,6 | 1220 | |
| K980140010 | 5704403195046 | 4x10 | 75 | D./Cut | 19,2 | 790 | |
| * The values can have small deviations | |||||||
