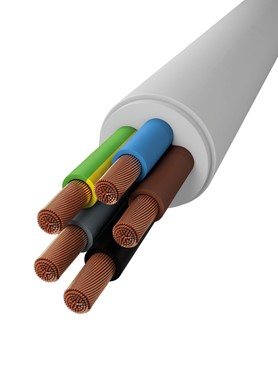

N2XH-Softflex - 0.6/1 kV
Application
N2XH-Softflex is an extremely flexible, low-smoke, halogen-free cable designed for fixed installations. It is suitable for use in installations that require enhanced flexibility.
Construction
Conductor
Flexible electrolytic Cu, class 5
Insulation
XLPE
Conductor color
According to HD 308
Outer sheath
Halogen free, flexible polyolefin, grå
Technical data
Working temperature
-40° C to +90° C
Min. installation and handling temperature: 0°C
Rated voltage
AC: 0.6/1/(1.2) kV
Bend radius
5 x cable diameter
Technical comments
Short circuit temp.: max 250° C / 5 sec.
CPR classification:
Dca-s1,d2,a1
Please request for DoP at dop@scankab.dkApprovals
EN 50575, IEC 60332-1, EN 50399, IEC 60754-1, IEC 60754-2, CE, RoHS
Abrasion resistant
Bending radius 5 x cable diameter
Can be buried
Can be immersed into water
Can lay in tubes
Environmentally friendly
Flame retardant acc. to IEC 60332-1
Flexible
For industrial mobile use
For industrial use
For permanent outdoor installation
For use in cable trays
For use in switchboards
Halogen free
Impact resistance: medium
Low emission of corrosive gases acc. to IEC 60754
Max. working temp. +90° C
Min. working temperature -40° C
Oil resistant
Outdoor use
Resistance towards oil and chemicals
Suitable for bricking
Suited for public places
Suited for wall attachment
UV-resistant
Water resistant
Withstands freezing
Withstands moisture
| SKU | EAN | CPR | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* |
|---|---|---|---|---|---|---|---|
| 32304010 | 5704403214570 | Dca-s1,d2,a1 | 4x10 | 86 | D./Cut | 15,7 | 505 |
| 32305004G | 5704403213610 | Dca-s1,d2,a1 | 5G4 | 49 | D./Cut | 12,8 | 300 |
| 32305006G | 5704403213610 | Dca-s1,d2,a1 | 5G6 | 63 | D./Cut | 14,3 | 405 |
| 32305010G | 5704403213634 | Dca-s1,d2,a1 | 5G10 | 86 | D./Cut | 17,1 | 635 |
| 32305016G | 5704403213641 | Dca-s1,d2,a1 | 5G16 | 115 | D./Cut | 20,2 | 945 |
| * The values can have small deviations | |||||||
