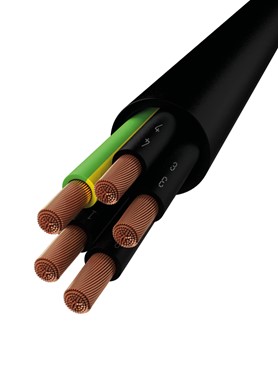

SCANFLEX ® ES05 VV-F - 300/500 V
Application
SCANFLEX® ES05 VV-F is used where a flexible cable connection is needed, for instance for control equipment in machinery and production where there is a demand on UV-resistant control cables.
Construction
Conductor
Tinned Cu-thread, class 5
Insulation
PVC
Conductor color
Black with white numbering
Outer sheath
PVC, black, UV-resistant
Technical data
Working temperature
-5o C to +70o C
Rated voltage
300/500 V
Test voltage
2000 V
Bend radius
5 x cable diameter
CPR classification:
Eca
Please request for DoP at dop@scankab.dkApprovals
EN 50575, IEC 60332-1, CE, RoHS
Bending radius 5 x cable diameter
Can be buried
Can lay in tubes
Flame retardant acc. to IEC 60332-1
Flexible
For industrial use
Max. working temp. +70° C
Meter marked
Min. working temperature -5° C
Outdoor use
Resistance towards oil and chemicals
UV-resistant
| SKU | EAN | CPR | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* |
|---|---|---|---|---|---|---|---|
| 0107001 | 5704403000081 | Eca | 7G1 | 10 | D./Cut | 7,9 | 115 |
| 0108001 | 5704403056293 | Eca | 8G1 | 10 | D./Cut | 8,6 | 135 |
| 0110001 | 5704403000128 | Eca | 10G1 | 10 | D./Cut | 9,7 | 165 |
| 0112001 | 5704403000142 | Eca | 12G1 | 10 | D./Cut | 10,3 | 190 |
| 0116001 | 5704403000173 | Eca | 16G1 | 10 | D./Cut | 11,4 | 245 |
| 0119001 | 5704403000180 | Eca | 19G1 | 10 | D./Cut | 12,1 | 280 |
| 0124001 | 5704403000210 | Eca | 24G1 | 10 | D./Cut | 13,7 | 345 |
| 0130001 | 5704403000258 | Eca | 30G1 | 10 | D./Cut | 14,7 | 410 |
| 0137001 | 5704403025381 | Eca | 37G1 | 10 | D./Cut | 17,2 | 535 |
| * The values can have small deviations | |||||||
