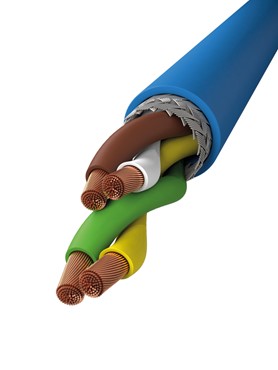

FLEXTRONIC ® 2CH-P 2065, Blue - 300/500 V
Application
FLEXTRONIC® 2CH-P 2065, Blue is used where a flexible cable connection is needed, for instance measure or control equipment in machinery and production.
Construction
Conductor
Stranded electrolytic annealed Cu, class 5, twisted pair
Insulation
Halogen free, flame retardant
Conductor color
Coloured according to DIN 47100
Screen
Tinned braided Cu screen
Outer sheath
Halogen free, flame retardant, blue RAL 5015
Technical data
Working temperature
| Flexible: | -5° C to +70° C |
| Fixed: | -30° C to +70° C |
Rated voltage
300/500 V
Test voltage
1500 V
Bend radius
Flexible: 15 x cable diameter
Fixed: 7.5 x cable diameter
Technical comments
Isolationsmodstand: min. 200 MΩ x km.
Induktans: ca. 0,65 mH/km.
Approvals
IEC/EN 60332-1, VDE 0482-265-2-1, IEC 60754-2 / EN 50267 (HD602), IEC/EN 61034-2 / (HD606)/BS 7622, VDE 0812, CE, RoHS
Bending radius 15 x cable diameter
Flame retardant acc. to IEC 60332-1
Flexible
Halogen free
Low emission of corrosive gases acc. to IEC 60754
Low smoke emission during fire acc. to 61034
Max. working temp. +70° C
| SKU | EAN | Dimension (mm2) | Current Value (A) | Winding | Color | Diameter (mm)* | Weight (kg/km)* |
|---|---|---|---|---|---|---|---|
| 337005002B | 57044030104505 | 2x2x0,5 | 7 | D./Cut | Blue | 7,7 | 76 |
| * The values can have small deviations | |||||||
