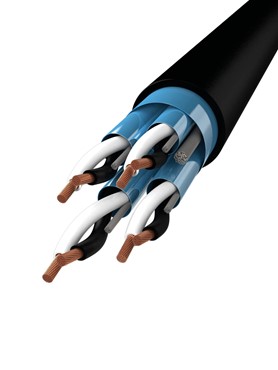

SCANINSTRU RE-2X(st)H-PiMF - 300/500 V


SCANINSTRU RE-2X(st)H-PiMF is a halogen free cable used for process control and data processes, analog or digital transmission; instrumentation cables are used for a wide range of areas. Factories, refineries, petrochemical institutions, energy houses, natural gas pump stations. The cables can be buried directly in the ground, and the cables are UV-resistant.



Plain annealed stranded Cu wires, class 2
Cross section for conductor at 0.75 mm2: 7x0.37 mm


Insulation thickness: 0.40 mm

Conductor color
Pair:   black and white, numbered
  a-core = black
b-core = white
Triple:   black, white and red, numbered
  a-core = black
b-core = white
c-core = red




Outer sheath

Halogen free flame retardant compound, black
Cables with blue outer sheath can be delievered upon request for intrinsically safe installation


Tinned Cu (7x0.30 mm)

Technical data

Working temperature

-40° C to +90° C

Rated voltage

300/500 V

Test voltage

Conductor/conductor: 2000 V
Conductor/screen: 1000 V

Bend radius

10 x cable diameter

Technical comments

Conductor resistance: max 24,5 Ohm/km
Insulation resistant: min 5000 MOhm x km
L/R ration: max  25 µH/Ohm
Capacitance: max 85 nF/km (800 Hz)
Unbalanced capacitance: max 500 pF/500 m
Oil resistance (IEC 60811-404): 70° C / 4 hours (ASTM no. 2)


IEC 60332-1, IEC 60332-3-24 (CAT-C), EN 50266-2-2, IEC 61034-1+2, HD 606, IEC 60754-2, EN 50267, EN 50288-7, IEC 60811-404, CE, RoHS
Bending radius 10 x cable diameter
Can be buried
Can lay in tubes
Electromagnetically protected
Environmentally friendly
Fire retardant acc. to IEC 60332-3
Fire retardant acc. to IEC 60332-3-24 (CAT-C)
Flame retardant acc. to IEC 60332-1
For permanent outdoor installation
Halogen free
Low emission of corrosive gases acc. to IEC 60754
Low smoke emission during fire acc. to 61034
Max. working temp. +90° C
Min. working temperature -40° C
Outdoor decommissioning
Suited for public places
Withstands freezing
Withstands moisture
SKU EAN Dimension (mm2) Current Value (A) Winding Color Diameter (mm)* Weight (kg/km)*
10470220075P 5704403117963 2x2x0,75 - D./Cut Black 9,3 109
10470220075PB 570440318397 2x2x0,75 - D./Cut Blå 9,3 109
10470420075P 5704403118403 4x2x0,75 - D./Cut Black 11,9 175
10470820075P 5704403117987 8x2x0,75 - D./Cut Black 16,1 310
10471620075P 5704403117994 16x2x0,75 - D./Cut Black 21,1 530
10472420075P 5704403118007 24x2x0,75 - D./Cut Black 25,5 760
* The values can have small deviations
