RE-2X(st)HSWAH - joint screen and armoured fællesskærmet, armeret - 300/500 V

Application

RE-2X(st)HSWAH is used for process control and data processes, analog or digital transmission; instrumentation cables are used for a wide range of areas. Factories, refineries, petrochemical institutions, energy houses, natural gas pump stations, ect. are the general use of the cables.

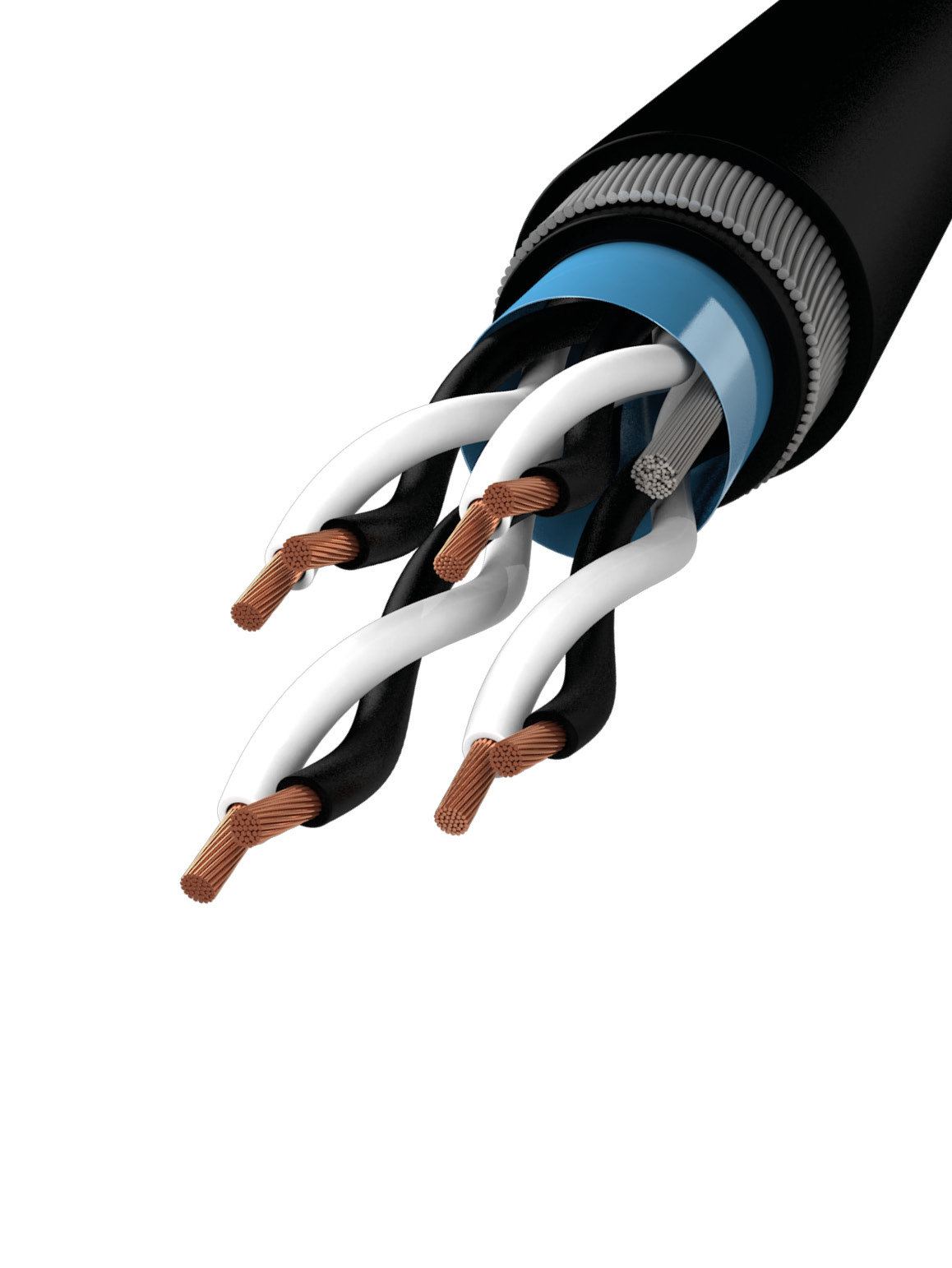

Construction

Conductor

Plain annealed stranded Cu wires, class 2 // 1 orange communication core (0,5 mm2)

Insulation

XLPE

Conductor color
Pair: black and white
Triple: black, white and red
Inner sheath

Halogen free compound, black

Screen

Screen: Electrostatic plastic laminated aluminumfoil (AL-PES)
Armament: Round galvanized steel wire

Outer sheath

Halogen free compound, black or blue 5015
Cables with blue outer sheath are used for intrinsically safe installation

Drainwire

Tinned Cu (7x0.30 mm)

Technical data

Working temperature

-30° C to +90° C

Rated voltage

300/500 V

Test voltage
Conductor/conductor:  2000 V
Conductor/screen: 1000 V
Bend radius

12 x cable diameter

Technical comments

Insulation resistant: min 5000 M.Ωxkm
Capacitance: max 85 nF/km (800 Hz)
Unbalanced capacitance: max 500 pF/500 m
Oil resistance: 70° C / 4 hours

Approvals

IEC 60332-1, IEC 60332-3-22, IEC 61034, IEC 60754-2, IEC 60811, CE, RoHS
Bending radius 12 x cable diameter
Fire retardant acc. to IEC 60332-3
Flame retardant acc. to IEC 60332-1
Max. working temp. +90° C
UV-resistant
SKU EAN Dimension (mm2) Current Value (A) Winding Diameter (mm)* Weight (kg/km)*
- - 1x2x1,5 - D./Cut 11,5 299
* The values can have small deviations
