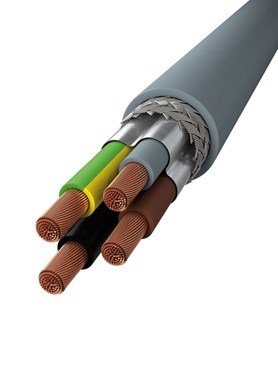

SCREENFLEX VC4V-K J, EMC

Application

SCREENFLEX VC4V-K J EMC is used where a cable connection is needed between for instance a frequency converter and a motor. The cable is suitable for outdoor mounting.

Construction

Conductor

Electrolytic annealed Cu thread, class 5 acc. to IEC 60228

Insulation

Flexible PVC

Conductor color

Acc. to HD 308 / EN 50334

Screen

Screen coverage of 100% consisting of:
Alu/polyester tape plus drainwire
Tin-coated braided Cu screen

Outer sheath

Flexible PVC, grey

Technical data

Working temperature

-40º C to +70º C

Rated voltage

300/500 V (up to 1,5 mm2 cross section)
0,6/1 kV (from 2,5 mm2 cross section)

Bend radius

5 x cable diameter

CPR classification:
Please request for DoP at dop@scankab.dk

Approvals

EN 50575, IEC 60332-1, IEC 60332-3, IEC 60502-1, IEC 60228, EN 50525, IEC 60364-5-52, CE, RoHS
Bending radius 5 x cable diameter
Can be buried
Can lay in tubes
Electromagnetically protected
Fire retardant acc. to IEC 60332-3
Flame retardant acc. to IEC 60332-1
Flexible
For industrial mobile use
For industrial use
For permanent outdoor installation
For use in cable trays
For use in switchboards
Max. working temp. +70° C
Meter marked
Min. working temperature -40° C
Outdoor use
Resistance towards oil and chemicals
UV-resistant
Water resistant
Withstands moisture
SKU EAN CPR Dimension (mm2) Current Value (A) Winding Diameter (mm)* Weight (kg/km)*
970010003 - Cca-s2,d1,a3 3G1 10 D./Cut 6,6 70
970015003 - Cca-s2,d1,a3 3G1,5 16 D./Cut 7,7 95
970025003 5704403020263 Cca-s2,d1,a3 3G2,5 30 D./Cut 9,4 145
970010004 - Cca-s2,d1,a3 4G1 10 D./Cut 7,0 85
970015004 5704403078134 Cca-s2,d1,a3 4G1,5 16 D./Cut 8,4 120
970025004 5704403020270 Cca-s3,d1,a3 4G2,5 25 D./Cut 10,2 180
970040004 5704403020300 Cca-s3,d1,a3 4G4 34 D./Cut 12,6 275
970060004 5704403020317 Cca-s3,d1,a3 4G6 43 D./Cut 14,4 360
970100004 5704403020324 Cca-s3,d1,a3 4G10 60 D./Cut 17,5 570
970160004 5704403020331 Cca-s3,d1,a3 4G16 80 D./Cut 20,1 815
970250004 5704403020348 Cca-s3,d1,a3 4G25 101 D./Cut 24,5 1225
970350004 5704403020355 Cca-s3,d1,a3 4G35 126 D./Cut 28,2 1655
970700004 5704403020379 Cca-s3,d1,a3 4G70 196 D./Cut 37,5 3105
* The values can have small deviations
