TOPDRIVE ® ROZ1-K (AS) VFD, EMC - 0.6/1 kV
Application
TOPDRIVE® ROZ1-K (AS) VFD EMC is especially suitable for all use where the demand is for double screened cables in connection with EMC. The cable is used in industrial and building installations, in public buildings, power plants, and engine installations or anywhere where there is a demand for 0.6/1 kV screened, halogen free, 90° C cable. The cable is suited for burial and may be used outdoors.

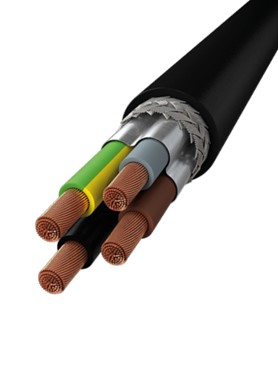

Construction
Flexible electrolytic Cu, class 5
XLPE
According to HD 308
Flexible halogen free material
100% covering screen consisting of:
aluminum / polyester separator and tinned braided Cu screen
Extra flexible halogen free compound, black
Technical data
-40º C to +90º C
0.6/1 kV
10 x cable diameter
For further technical data - click here
July 2020: Changed name from TOXFREE to TOPDRIVE
Cca-s1a,d1,a1
Please request for DoP at dop@scankab.dkApprovals
EN 50575, IEC 60502-1, IEC 60092-353, IEC 60754-1, IEC 60754-2, IEC 60332-1, IEC 60332-3 Cat. A, IEC 61034-1, IEC 61034-2, ULCA, CE, RoHS
| SKU | EAN | CPR | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* |
|---|---|---|---|---|---|---|---|
| 32094001 | 5704403042319 | Cca-s1a,d1,a1 | 4G1,5 | 23 | D./Cut | 11,4 | 185 |
| 32094002 | 5704403038282 | Cca-s1a,d1,a1 | 4G2,5 | 32 | D./Cut | 12,2 | 230 |
| 32094004 | 5704403062645 | Cca-s1a,d1,a1 | 4G4 | 42 | D./Cut | 13,7 | 300 |
| 32094006 | 5704403041053 | Cca-s1a,d1,a1 | 4G6 | 54 | D./Cut | 15,1 | 385 |
| 32094010 | 5704403038299 | Cca-s1a,d1,a1 | 4G10 | 75 | D./Cut | 17,2 | 560 |
| 32094016 | 5704403038305 | Cca-s1a,d1,a1 | 4G16 | 115 | D./Cut | 20,8 | 885 |
| * The values can have small deviations | |||||||
