PROFIBUS L2 P 3010 - 250 V

Application

PROFIBUS L2 P 3010 is used where a high flexible cable connection is needed, for instance signal transmission in engineering.

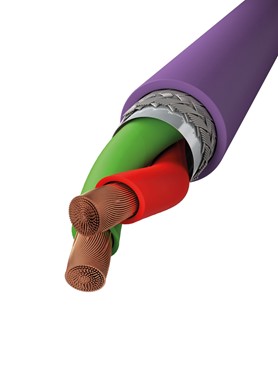

Construction

Conductor

Bare Cu thread, class 6

Insulation

PE

Conductor color

Red and green

Screen

Aluminium foil, tin-coated braided Cu screen

Outer sheath

PUR, violet

Technical data

Working temperature

-40º C to +60º C

Rated voltage

250 V

Test voltage

3600 V for 3 sec.

Bend radius

Min. 65 mm

Approvals

IEC 60332-1, IEC 60754, IEC 61034, CE, RoHS
Abrasion resistant
Bending radius
Crane cable
Electromagnetically protected
Environmentally friendly
Flame retardant acc. to IEC 60332-1
Flexible
For industrial mobile use
For industrial use
For petrol stations, oil deposits and refineries
For robot technology
For use in cable trays
Halogen free
Impact resistance: medium
Lift and elevator cable
Low emission of corrosive gases acc. to IEC 60754
Low smoke emission during fire acc. to 61034
Max. working temp. +60° C
Min. working temperature -40° C
Oil and grease resistant
Oil resistant
Resistance towards oil and chemicals
Suitable for cable chains
Suited for public places
Water resistant
Withstands freezing
Withstands moisture
SKU EAN Dimension (mm) Current Value (A) Winding Diameter (mm)* Weight (kg/km)*
386006402 5704403012602 1x2x0,64 - D./Cut 8,5 65
* The values can have small deviations
