EIB-BUS H 3005 - 250 V
Application
EIB-BUS H 3005 is used in control systems for comfort, security and energy saving. The cables are used for data transmission in lighting, heating, air conditioning and security.

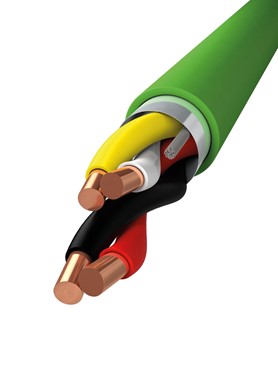

Construction
Conductor
0.8 mm Cu thread
Insulation
Halogen free flame retardant compound
Conductor color
Pairs: red/black and white/yellow
Screen
AL-PES tape
7x0.16 mm tinnes Cu drain wire
Outer sheath
Halogen free flame retardant compound, green
Technical data
Working temperature
-30º C to +70º C
Rated voltage
250 V
Test voltage
1500 V
Bend radius
10 x cable diameter
Technical comments
Conductor resistance (max): 36.6 Ω/km
Insulation resistance: > 200 MΩ x km
Capacitance (800 Hz): 100 pF/m
CPR classification:
Dca-s1,d1,a1
Please request for DoP at dop@scankab.dkApprovals
IEC/EN 60332-1, VDE 0482-265-2-1, 60754-2, EN 50267, IEC 61034, BS 7622, HD 606, CE, RoHS
Bending radius 10 x cable diameter
Electromagnetically protected
Environmentally friendly
Flame retardant acc. to IEC 60332-1
Flexible
Halogen free
Low emission of corrosive gases acc. to IEC 60754
Low smoke emission during fire acc. to 61034
Max. working temp. +70° C
Min. working temperature -30° C
Suited for public places
| SKU | EAN | CPR | Dimension (mm) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* |
|---|---|---|---|---|---|---|---|
| 382008002 | 5704403012541 | Dca-s1,d1,a1 | 2x2x0,8 | - | T-500 | 6,5 | 64 |
| * The values can have small deviations | |||||||
