SCANFLEX ® Y 3001 - 300/500 V

Application

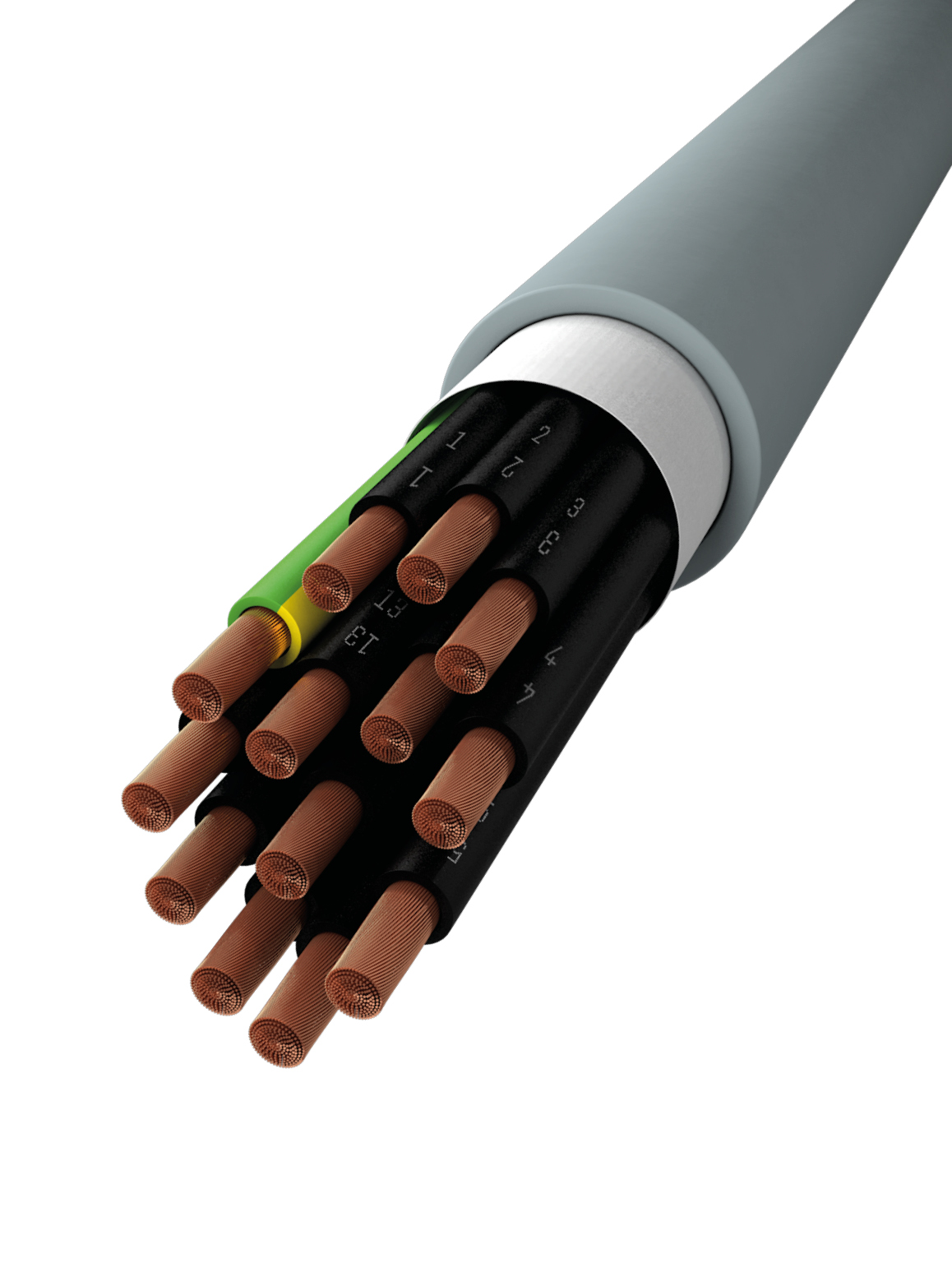

SCANFLEX® Y 3001, high-flexible PVC / PVC control cable.
The cable is used for signal, control and machine installations where continuous movements are required, such as in cable chains or on movable machine parts.

Construction

Conductor

Fine wired, bare copper according to IEC 60228, cl. 6

Insulation

PVC compound

Conductor color

Black with white numbering and a yellow/green earth conductor (for 3 or more conductors).
Non-woven wrapping over braiding.

Outer sheath

PVC
Grey, RAL 7001

Technical data

Working temperature
Fixed -30 °C to +80 °C
Flexible:  -5 °C to +70 °C



Rated voltage

300/500 V

Test voltage

4.000 V / 50 Hz

Bend radius
Fixed 7,5 x cable diameter
Flexible:  10 x cable diameter



Technical comments

Designed for minimum 3 million bending cycles in drag chains

Approvals

EN 60332-1-2, IEC 60228, CE, RoHS
Abrasion resistant
Bending radius 10 x cable diameter
Flame retardant acc. to IEC 60332-1
Flexible
For industrial mobile use
For industrial use
Low voltage cable
Max. working temp. +80° C
Min. working temperature -30° C
Suitable for cable chains
Torsion resistant
SKU EAN Dimension (mm2) Current Value (A) Winding Diameter (mm)* Weight (kg/km)*
9010005002 5704403134373 2x0,5 - D./Cut 5,2 32
9010005003 5704403134380 3G0,5 - D./Cut 5,5 41
9010005004 5704403134397 4G0,5 - D./Cut 6,0 52
9010005005 5704403134403 5G0,5 - D./Cut 6,6 64
9010005007 5704403134410 7G0,5 - D./Cut 8,0 92
9010005012 5704403134427 12G0,5 - D./Cut 9,6 128
9010005018 5704403134434 18G0,5 - D./Cut 11,5 195
9010005025 5704403134441 25G0,5 - D./Cut 14,2 284
9010007502 5704403134458 2x0,75 - D./Cut 5,7 39
9010007503 5704403134465 3G0,75 - D./Cut 6,2 51
9010007504 5704403134472 4G0,75 - D./Cut 6,8 65
9010007505 5704403134489 5G0,75 - D./Cut 7,4 80
9010007507 5704403134496 7G0,75 - D./Cut 8,9 117
9010007512 5704403134502 12G0,75 - D./Cut 10,5 169
9010007518 5704403134519 18G0,75 - D./Cut 12,7 254
9010007525 5704403134526 25G0,75 - D./Cut 15,8 376
9010010002 5704403134533 2x1 - D./Cut 6,0 46
9010010003 5704403134540 3G1 - D./Cut 6,6 60
9010010004 5704403134557 4G1 - D./Cut 7,3 78
9010010005 5704403134564 5G1 - D./Cut 7,9 96
9010010007 5704403134571 7G1 - D./Cut 9,6 144
9010010012 5704403134588 12G1 - D./Cut 11,4 205
9010010018 5704403134595 18G1 - D./Cut 13,9 314
9010010025 5704403134601 25G1 - D./Cut 17,6 498
9010015002 5704403134618 2x1,5 - D./Cut 6,7 60
9010015003 5704403134625 3G1,5 - D./Cut 7,4 80
9010015004 5704403134632 4G1,5 - D./Cut 8,1 102
9010015005 5704403134649 5G1,5 - D./Cut 9,1 130
9010015007 5704403134656 7G1,5 - D./Cut 10,8 192
9010015012 5704403134663 12G1,5 - D./Cut 13,0 273
9010015018 5704403134670 18G1,5 - D./Cut 15,6 417
9010015025 5704403134687 25G1,5 - D./Cut 19,8 632
9010025003 5704403134694 3G2,5 - D./Cut 9,0 128
9010025004 5704403134700 4G2,5 - D./Cut 10,0 161
9010025005 5704403134717 5G2,5 - D./Cut 11,2 205
9010025007 5704403134724 7G2,5 - D./Cut 13,5 300
9010025012 5704403134731 12G2,5 - D./Cut 16,0 440
9010025018 5704403134748 18G2,5 - D./Cut 20,4 703
9010025025 5704403134755 25G2,5 - D./Cut 24,7 1054
9010040003 5704403134762 3G4 - D./Cut 10,6 176
9010040004 5704403134779 4G4 - D./Cut 11,8 227
9010040005 5704403134786 5G4 - D./Cut 13,5 298
9010040007 5704403134793 7G4 - D./Cut 18,6 446
9011060003 5704403134809 3G6 - D./Cut 13,0 280
9011060004 5704403134816 4G6 - D./Cut 14,2 358
9011060007 5704403134823 7G6 - D./Cut 19,8 614
* The values can have small deviations
