N2XS(F)2Y - 12/20 (24) kV
Application
NA2XS(F)2Y is used for installation in ground, in water, outdoors, indoors and in cable ducts for power stations, industry, and distribution networks. The high mechanical durability of the PE-sheath permits strong mechanical stress during installation or during operation. The water blocking tape avoids water propagation inside the cable.

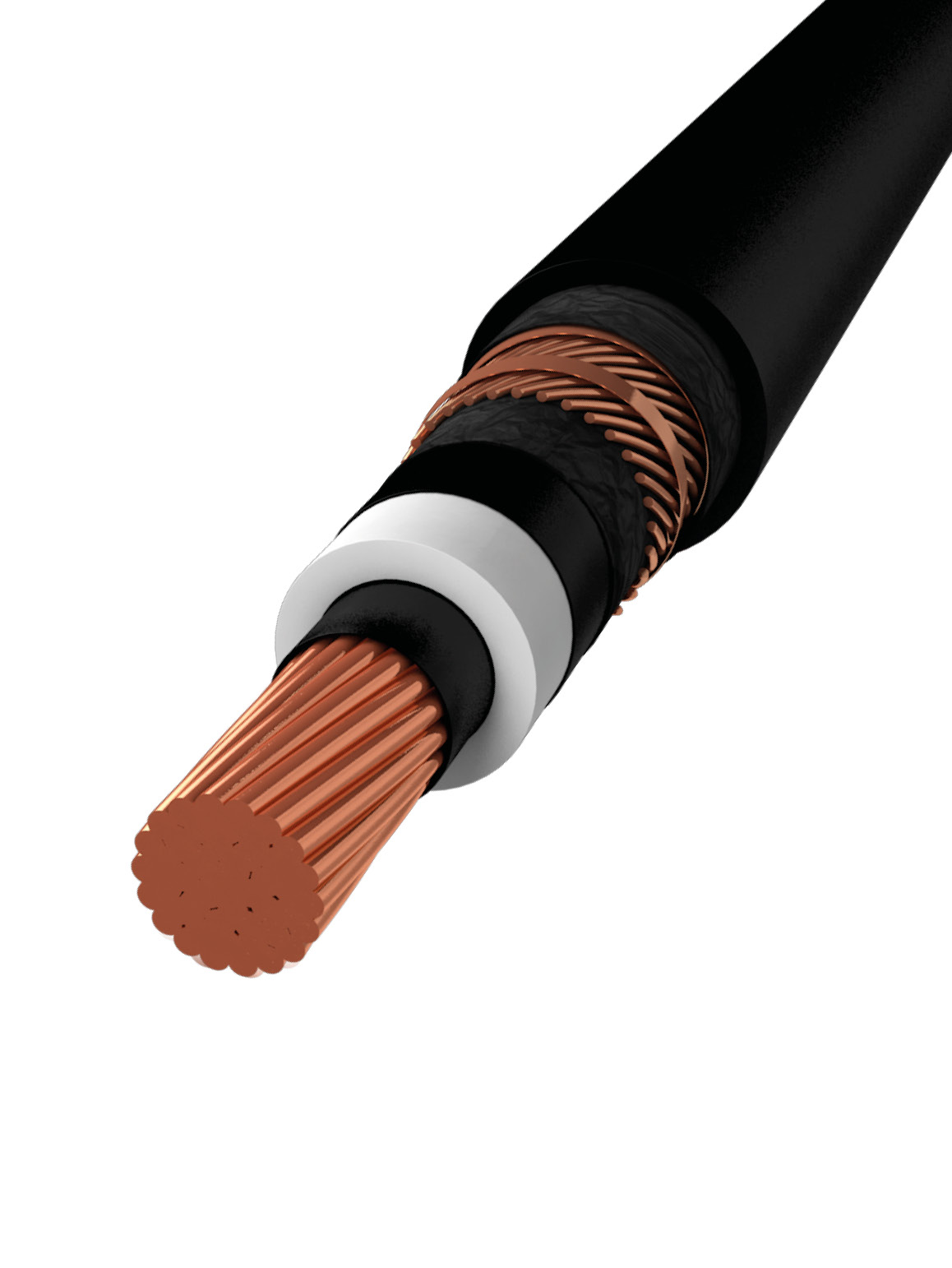

Construction
Bare stranded Cu, class 2
Extruded semi-conducting layer around the conductor
XLPE DIX8
Extruded semi-conducting layer around the insulation
Semi-conducting water blocking tape
Cu threads and Cu counter helix over tape material
Water blocking tape
Polyethylene DMP2, black
Laminated sheath
Polymer laminated aluminum tape 0.25 mm
PE-sheath
Cross and longitudinal watertightness
Technical data
-20° C to +90° C
12/20 kV (24 kV)
42 kV
15 x cable diameter
Approvals
VDE 0276-620, CE, RoHS
| SKU | EAN | Dimension (mm2) | Current Value (A) | Winding | Diameter (mm)* | Weight (kg/km)* | |
|---|---|---|---|---|---|---|---|
| 871011546 | - | 1X50/16 | 200 | Drum | 28 | 1300 | |
| 871011489 | - | 1X50/16 | 239 | Drum | 29 | 1350 | |
| 871011490 | - | 1X70/16 | 297 | Drum | 31 | 1600 | |
| 871011317 | 5704403186921 | 1X95/16 | 361 | Drum | 32 | 1900 | |
| 871011491 | - | 1X120/16 | 416 | Drum | 34 | 2150 | |
| 871011306 | - | 1X150/25 | 366 | Drum | 36 | 1300 | |
| 871011492 | - | 1X150/25 | 470 | Drum | 35 | 2500 | |
| 871011309 | - | 1X185/25 | 538 | Drum | 37 | 2900 | |
| 871011493 | 5704403040704 | 1X240/25 | 634 | Drum | 40 | 3500 | |
| 871011494 | 5704403186181 | 1X300/25 | 724 | Drum | 42 | 4150 | |
| 871011495 | - | 1X400/35 | 829 | Drum | 45 | 5100 | |
| 871011496 | - | 1X500/35 | 953 | Drum | 48 | 6200 | |
| 871012225 | - | 1X630/35 | 1094 | Drum | 52 | 7365 | |
| 871013843 | - | 1X800/35 | - | Drum | 57 | 8800 | |
| 871014083 | - | 1X1000/35 | 1391 | Drum | 61 | 10900 | |
| * The values can have small deviations | |||||||
